DHC series ultrasonic vibrating screen is a specialized screening equipment for fine powder screening materials development, ultrasonic vibrating screen is the most effective solution to the current mesh blockage. 200 mesh can be widely used in fine fine screening filter industry, specifically to address the high filtering accuracy, effectively address the reunion, electrostatic, strong adsorption jam mesh screening and other problems, is a major technological breakthrough. The following is the use of ultrasonic vibration sieve notes:
1. Check before operation:
1) Is fixed connector locked on screen frame
2) Check whether the use of power ultrasonic generator 220V, and to ensure that there is ground fault protection
2. Installation:
1) Marked by the ultrasonic generator cable, insert the connector and tighten so that the ultrasonic generator ultrasonic power connector is properly connected with the body.
2) Reducing the ultrasonic generator power to a minimum, turning on the ultrasonic generator power switch, is observing the ammeter normal? (conventional current should be less than 200mA).
3) Debugging vibration screening filter, so that the material running track to achieve the desired state.
4) Start vibration screening filter, a small knob on feeding Trimmers ultrasonic generator power, so the screen to reach an ideal state. (Current should be less than 200mA)
5) Feeding into the use of uniform
3. Notes:
1) Used ultrasonic generator power supply 220V, 50HZ and ensure that there is ground protection.
2) Single mesh screening, must be uniform feeding.
 3) Regular inspection body protection conduction line ultrasonic sealing hose are tight.
 4) The device should be placed away from the calculator.
 5)  Failure to repair my company.

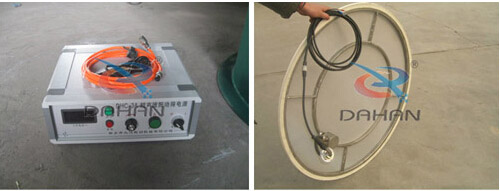

An ultrasonic power connects a clear net transducers, ultrasonic transducer radiating surface in contact with the mesh is blocked, the relative displacement, to clear the screen port blockage. With fast and efficient, improve network quality clear, does not change the network port size, do not harm the screen surface quality, etc., can be widely used test sieve and vibration sieve.
