Mobile linear vibrating sieve

  • Category:Square vibrating sieve
  • Description:Mobile linear vibrating sieve is mounted at the bottom of the universal wheel, Mainly used in screening venues environment are not fixed , making it easy for users to move and meet different sites work needs.
  • Features

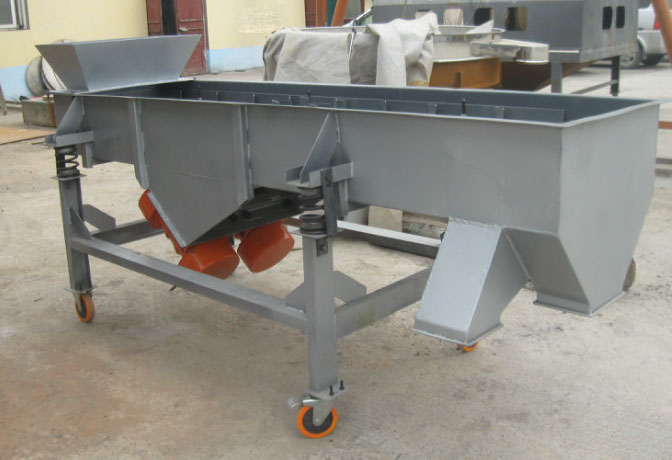

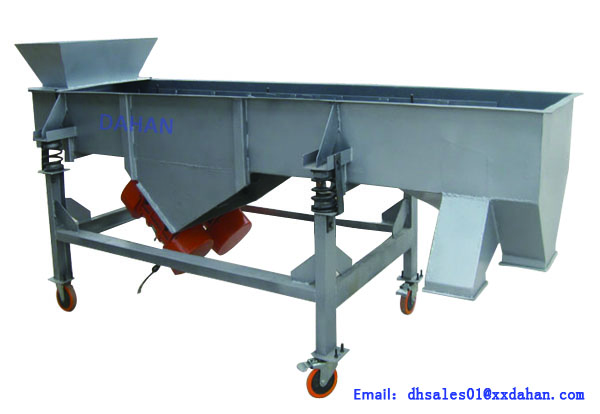

Mobile linear vibrating sieve
All linear vibrating sieve can be customized mobile.Mobile linear vibrating sieve is mounted at the bottom of the universal wheel, it can rotate 360 degrees to move, Mainly used in screening venues environment are not fixed , making it easy for users to move and meet different sites work needs.


Overview of linear Vibrating sieve machine:
Linear vibrating sieve machine has another name:square vibrating sieve .Linear sieve machinery vibration motor excitation as the source of vibration,so that the material was tossed in the sieve,while forward in a straight line material evenly into the screening machine feeder feed port,multi-layer mesh specifications of sieve,sieve material,respectively,discharged from their exports.With low power consumption,high yield, simple structure,easy maintenance,fully enclosed structure,no dust,automatic nesting,more suitable for pipeline operations.

Machine sort:
According to the number of layers:
1,Single-deck vibrating sieve. 2,Two-decks and multilayer vibrating sieve.

According to the material of the machine.
1,Carbon steel square vibrating machine.     2,Stainless steel square vibrating machine.
About Structural details

Structure Description
The screening machine is mainly composed of screen box, screen frame, screen, vibration motor, motor pedestal, damping springs, brackets and other components.
1. Screen box: the number of different thickness steel plates welded together, with a certain strength and stiffness, is a major component of the screening machine.
2, Screen frame: a small wood made ​​of pine or the amount of deformation is mainly used to keep the screen flat, reaching the normal screening.
3, Screen: low carbon steel, brass, bronze, stainless steel wire mesh and several kinds.
4, Vibration motor (use and maintenance methods are detailed in vibration motor manual).
5, the motor pedestal: Install vibration motor, connecting screws must be tightened before use, especially three days before the new trial screening machine, must repeatedly tightened to avoid loose causing the accident.
6, Damping spring: to prevent vibration transmitted to the ground, while supporting the full weight of the sieve box, during installation, the spring must be perpendicular to the ground.
7, Stents: the four pillars and two channel composition, supports screen box, when you install the pillars must be perpendicular to the ground, the two pillars of the following channels should be parallel to each other.
Technical parameters:

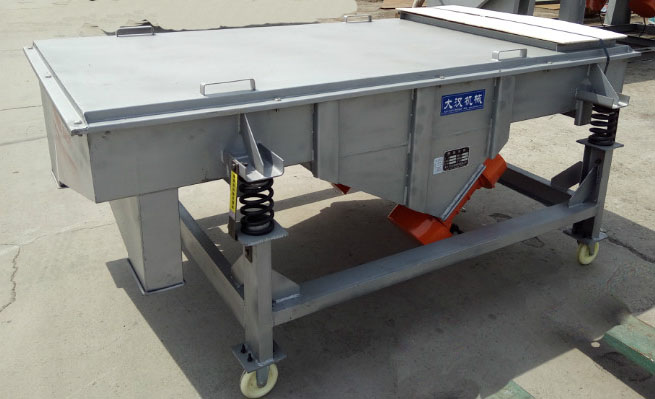

Our machine details:

Certification:
Certification of sieve machine
If you need our machine,you can contact me through these ways to get all information of the machine.
Becky Yang
E-mail:dhsales01@xxdahan.com
Skype:y1.becky
WhatsApp:0086-18738378118
Wechat: xxdhzds111
Xinxiang Dahan vibrating machinery Co.,Ltd
http://cndahan.en.alibaba.com/productlist.html
Address:1000 West of Forest Park,Yanjin County,Xinxiang City,Henan Province,China
If you place a order,we can delivery the machine you wanted in 5 workdays after receiving your payment.
